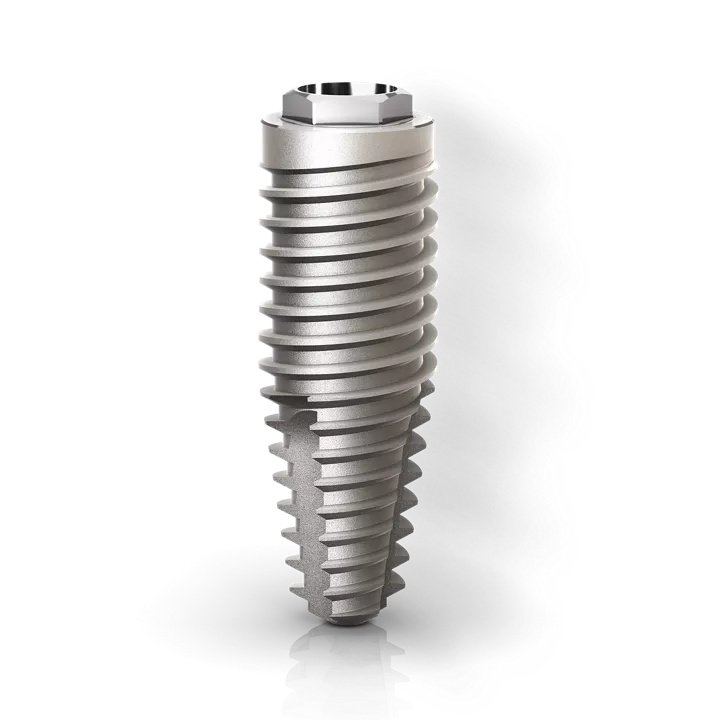

NUVO™️ ExternalFIT™️

The NUVO™ ExternalFIT™ features the External Hex connection based on the Bränemark concept in a tapered body design, maximizing treatment versatility and simplicity in all bone types. The NUVO™ Implant System offers a comprehensive implant and prosthetic portfolio covering all indications.


The NUVO™ ExternalFIT™ combines proven concepts in dentistry: the external hex connection based on the Bränemark concept, titanium grade 4 commercially pure (CP) and the well documented sand blasted and acid etched surface treatment.

External Hex Connection

NUVO™ ExternalFIT™  is designed based on the Standard Bränemark External hex connection.
This worldwide recognized connection has been proven through more than four decades of clinical usage.

Pure Titanium Grade 4

NUVO™ Implants are produced out from the most commercially pure and mechanically strong titanium grade 4 (Ti gr4 CP).

Sand Blasted & Acid Etched Surface

NUVO™ implants are treated with the well documented sandblasting and acid etched surface treatment, resulting from a highly controlled and validated process.


Simple as it should be, NUVO™ ExternalFIT™ presents an ease of use and widespread implant platform with features designed to bring peace of mind to the clinical practice.

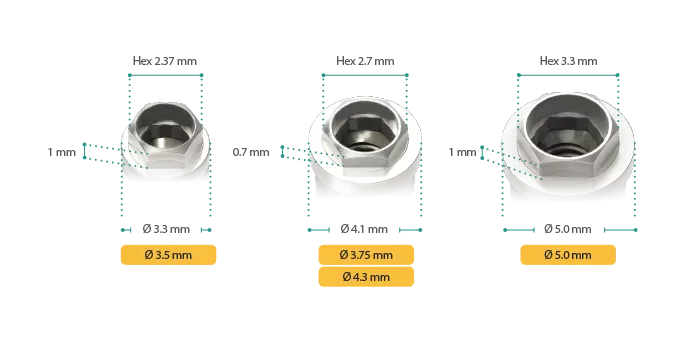

Implant-abutment fitting

The NUVO™ ExternalFIT™ allows a straightforward relation between the implant and abutment, bringing less complex steps of impression taking and subsequent restoration procedures in 3 prosthetic platforms: Ø 3.3, Ø 4.1 e Ø 5.0.

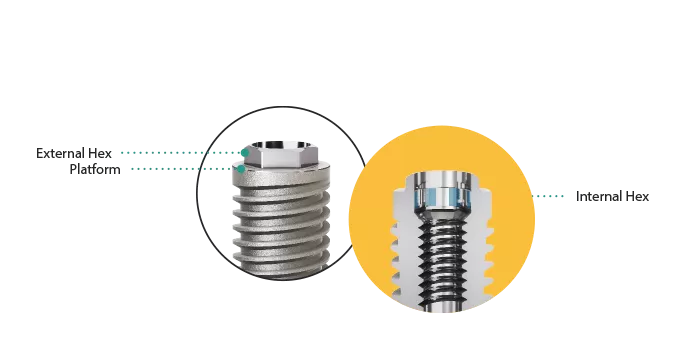

Internal Torque System

More than simplifying, NUVO™ ExternalFIT™ brings safety by featuring an internal torque system, designed to protect the external hexagon during implant torque insertion.

One Screw Driver

Reducing complexity on prosthetic handling, NUVO™ ExternalFIT™ allows working on final prostheses by using one screwdriver.


The NUVO™ Implant System enables versatility by offering an apically tapered implant body, designed to cover all mouth regions with numerous implant dimension options. The versatile restorative options are designed to meet the patient’s needed treatment with a straightforward prosthetic portfolio.

Tapered Implant Design

NUVO™ Implant System features a bone level apically tapered design, maximizing treatment options and efficiency regardless of the bone density.

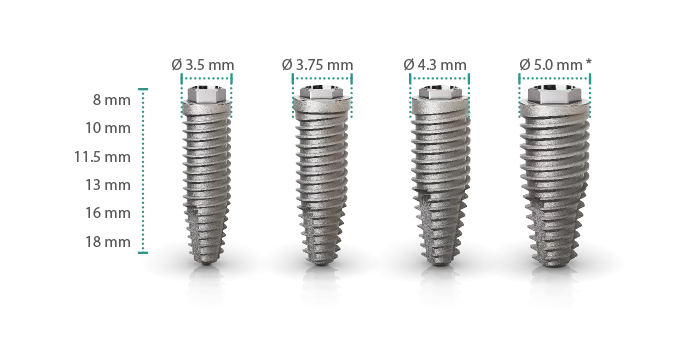

Comprehensive Implant Portfolio

NUVO™ Implants are designed for all indications by offering a full range of diameters and lenghts.

* Ø 5.0 mm implants until 16 mm.

Straightforward  Prosthetic Portfolio

NUVO™ ExternalFIT™ offers a straightforward prosthetic portfolio designed to meet the patient’s needed treatment:
  • Indication Type: From single to edentulous;
  • Retention Type: From screw to cement retained;
  • Workflow Type: From conventional to digital.   coming soon

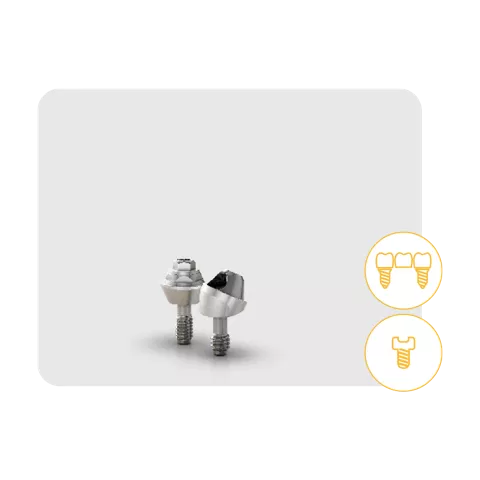

  • Multi Unit Screw Retained Abutment

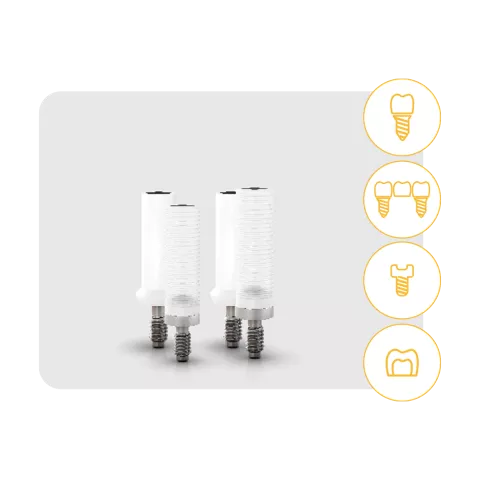

  • UCLA Abutment

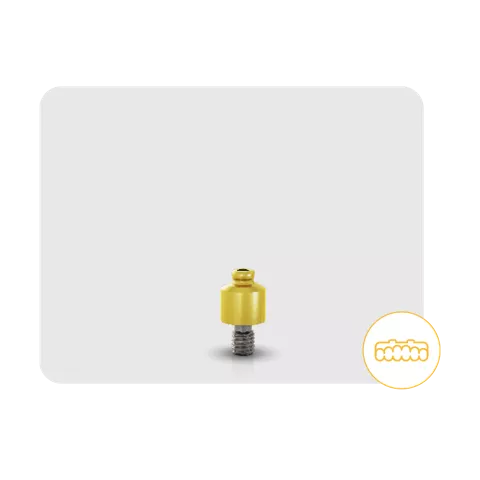

  • Attachment Equator
Single Unit Restoration
Removable Solution
Multi Unit Restoration
Screw Retained
Cement Retained
